Spark-Milvus Connector 用户指南

from pyspark.sql import SparkSession

columns = ["id", "text", "vec"]
data = [(1, "a", [1.0,2.0,3.0,4.0,5.0,6.0,7.0,8.0]),
    (2, "b", [1.0,2.0,3.0,4.0,5.0,6.0,7.0,8.0]),
    (3, "c", [1.0,2.0,3.0,4.0,5.0,6.0,7.0,8.0]),
    (4, "d", [1.0,2.0,3.0,4.0,5.0,6.0,7.0,8.0])]
sample_df = spark.sparkContext.parallelize(data).toDF(columns)
sample_df.write \
    .mode("append") \
    .option("milvus.host", "localhost") \
    .option("milvus.port", "19530") \
    .option("milvus.collection.name", "hello_spark_milvus") \
    .option("milvus.collection.vectorField", "vec") \
    .option("milvus.collection.vectorDim", "8") \
    .option("milvus.collection.primaryKeyField", "id") \
    .format("milvus") \
    .save()

import org.apache.spark.sql.{SaveMode, SparkSession}

object Hello extends App {

  val spark = SparkSession.builder().master("local[*]")
    .appName("HelloSparkMilvus")
    .getOrCreate()

  import spark.implicits._

  // Create DataFrame
  val sampleDF = Seq(
    (1, "a", Seq(1.0,2.0,3.0,4.0,5.0)),
    (2, "b", Seq(1.0,2.0,3.0,4.0,5.0)),
    (3, "c", Seq(1.0,2.0,3.0,4.0,5.0)),
    (4, "d", Seq(1.0,2.0,3.0,4.0,5.0))
  ).toDF("id", "text", "vec")

  // set milvus options
  val milvusOptions = Map(
      "milvus.host" -> "localhost" -> uri,
      "milvus.port" -> "19530",
      "milvus.collection.name" -> "hello_spark_milvus",
      "milvus.collection.vectorField" -> "vec",
      "milvus.collection.vectorDim" -> "5",
      "milvus.collection.primaryKeyField", "id"
    )

  sampleDF.write.format("milvus")
    .options(milvusOptions)
    .mode(SaveMode.Append)
    .save()
}

val df = spark.read
  .format("milvusbinlog")
  .load(path)
  .withColumnRenamed("val", "embedding")

val collectionDF = MilvusUtils.readMilvusCollection(spark, milvusOptions)

df.write.format("parquet").save(outputPath)
MilvusUtils.bulkInsertFromSpark(spark, milvusOptions, outputPath, "parquet")

spark-shell --jars spark-milvus-1.0.0-SNAPSHOT.jar,mysql-connector-j-x.x.x.jar

import org.apache.spark.ml.feature.{Tokenizer, Word2Vec}
import org.apache.spark.sql.functions.udf
import org.apache.spark.sql.{SaveMode, SparkSession}
import zilliztech.spark.milvus.MilvusOptions._

import org.apache.spark.ml.linalg.Vector

object Mysql2MilvusDemo  extends App {

  val spark = SparkSession.builder().master("local[*]")
    .appName("Mysql2MilvusDemo")
    .getOrCreate()

  import spark.implicits._

  // 创建DataFrame
  val sampleDF = Seq(
    (1, "Milvus was created in 2019 with a singular goal: store, index, and manage massive embedding vectors generated by deep neural networks and other machine learning (ML) models."),
    (2, "As a database specifically designed to handle queries over input vectors, it is capable of indexing vectors on a trillion scale. "),
    (3, "Unlike existing relational databases which mainly deal with structured data following a pre-defined pattern, Milvus is designed from the bottom-up to handle embedding vectors converted from unstructured data."),
    (4, "As the Internet grew and evolved, unstructured data became more and more common, including emails, papers, IoT sensor data, Facebook photos, protein structures, and much more.")
  ).toDF("id", "text")

  // 写入MySQL表
  sampleDF.write
    .mode(SaveMode.Append)
    .format("jdbc")
    .option("driver","com.mysql.cj.jdbc.Driver")
    .option("url", "jdbc:mysql://localhost:3306/test")
    .option("dbtable", "demo")
    .option("user", "root")
    .option("password", "123456")
    .save()

  // 从MySQL表读取数据
  val dfMysql = spark.read
    .format("jdbc")
    .option("driver","com.mysql.cj.jdbc.Driver")
    .option("url", "jdbc:mysql://localhost:3306/test")
    .option("dbtable", "demo")
    .option("user", "root")
    .option("password", "123456")
    .load()

  val tokenizer = new Tokenizer().setInputCol("text").setOutputCol("tokens")
  val tokenizedDf = tokenizer.transform(dfMysql)

  // 学习从单词到向量的映射关系。
  val word2Vec = new Word2Vec()
    .setInputCol("tokens")
    .setOutputCol("vectors")
    .setVectorSize(128)
    .setMinCount(0)
  val model = word2Vec.fit(tokenizedDf)

  val result = model.transform(tokenizedDf)

  val vectorToArrayUDF = udf((v: Vector) => v.toArray)
  // 将UDF应用于DataFrame
  val resultDF = result.withColumn("embedding", vectorToArrayUDF($"vectors"))
  val milvusDf = resultDF.drop("tokens").drop("vectors")

  milvusDf.write.format("milvus")
    .option(MILVUS_HOST, "localhost")
    .option(MILVUS_PORT, "19530")
    .option(MILVUS_COLLECTION_NAME, "text_embedding")
    .option(MILVUS_COLLECTION_VECTOR_FIELD, "embedding")
    .option(MILVUS_COLLECTION_VECTOR_DIM, "128")
    .option(MILVUS_COLLECTION_PRIMARY_KEY, "id")
    .mode(SaveMode.Append)
    .save()
}

import org.apache.spark.ml.feature.PCA
import org.apache.spark.ml.linalg.{Vector, Vectors}
import org.apache.spark.SparkConf
import org.apache.spark.sql.SparkSession
import org.apache.spark.sql.functions.udf
import org.apache.spark.sql.util.CaseInsensitiveStringMap
import zilliztech.spark.milvus.{MilvusOptions, MilvusUtils}

import scala.collection.JavaConverters._

object TransformDemo extends App {
  val sparkConf = new SparkConf().setMaster("local")
  val spark = SparkSession.builder().config(sparkConf).getOrCreate()

  import spark.implicits._

  val host = "localhost"
  val port = 19530
  val user = "root"
  val password = "Milvus"
  val fs = "s3a://"
  val bucketName = "a-bucket"
  val rootPath = "files"
  val minioAK = "minioadmin"
  val minioSK = "minioadmin"
  val minioEndpoint = "localhost:9000"
  val collectionName = "hello_spark_milvus1"
  val targetCollectionName = "hello_spark_milvus2"

  val properties = Map(
    MilvusOptions.MILVUS_HOST -> host,
    MilvusOptions.MILVUS_PORT -> port.toString,
    MilvusOptions.MILVUS_COLLECTION_NAME -> collectionName,
    MilvusOptions.MILVUS_BUCKET -> bucketName,
    MilvusOptions.MILVUS_ROOTPATH -> rootPath,
    MilvusOptions.MILVUS_FS -> fs,
    MilvusOptions.MILVUS_STORAGE_ENDPOINT -> minioEndpoint,
    MilvusOptions.MILVUS_STORAGE_USER -> minioAK,
    MilvusOptions.MILVUS_STORAGE_PASSWORD -> minioSK,
  )

  // 1, configurations
  val milvusOptions = new MilvusOptions(new CaseInsensitiveStringMap(properties.asJava))

  // 2, batch read milvus collection data to dataframe
  //  Schema: dim of `embeddings` is 8
  // +-+------------+------------+------------------+
  // | | field name | field type | other attributes |
  // +-+------------+------------+------------------+
  // |1|    "pk"    |    Int64   |  is_primary=True |
  // | |            |            |   auto_id=False  |
  // +-+------------+------------+------------------+
  // |2|  "random"  |    Double  |                  |
  // +-+------------+------------+------------------+
  // |3|"embeddings"| FloatVector|     dim=8        |
  // +-+------------+------------+------------------+
  val arrayToVectorUDF = udf((arr: Seq[Double]) => Vectors.dense(arr.toArray[Double]))
  val collectionDF = MilvusUtils.readMilvusCollection(spark, milvusOptions)
    .withColumn("embeddings_vec", arrayToVectorUDF($"embeddings"))
    .drop("embeddings")

  // 3. Use PCA to reduce dim of vector
  val dim = 4
  val pca = new PCA()
    .setInputCol("embeddings_vec")
    .setOutputCol("pca_vec")
    .setK(dim)
    .fit(collectionDF)
  val vectorToArrayUDF = udf((v: Vector) => v.toArray)
  // embeddings dim number reduce to 4
  // +-+------------+------------+------------------+
  // | | field name | field type | other attributes |
  // +-+------------+------------+------------------+
  // |1|    "pk"    |    Int64   |  is_primary=True |
  // | |            |            |   auto_id=False  |
  // +-+------------+------------+------------------+
  // |2|  "random"  |    Double  |                  |
  // +-+------------+------------+------------------+
  // |3|"embeddings"| FloatVector|     dim=4        |
  // +-+------------+------------+------------------+
  val pcaDf = pca.transform(collectionDF)
    .withColumn("embeddings", vectorToArrayUDF($"pca_vec"))
    .select("pk", "random", "embeddings")

  // 4. Write PCAed data to S3





如果你正在使用 Zilliz Cloud（托管式的 Milvus 服务），你可以利用它方便的数据导入 API。Zilliz Cloud 提供了全面的工具和文档，帮助你高效地从各种数据源，包括 Spark 和 Databricks，将数据移动到 Zilliz Cloud。只需设置一个 S3 存储桶作为中介，并将其访问权限开放给 Zilliz Cloud 账户。Zilliz Cloud 的数据导入 API 将自动将完整的数据批次从 S3 存储桶加载到 Zilliz Cloud 集群中。

**准备工作**

1. 通过将一个 jar 文件添加到 Databricks Cluster 中来加载 Spark 运行时。

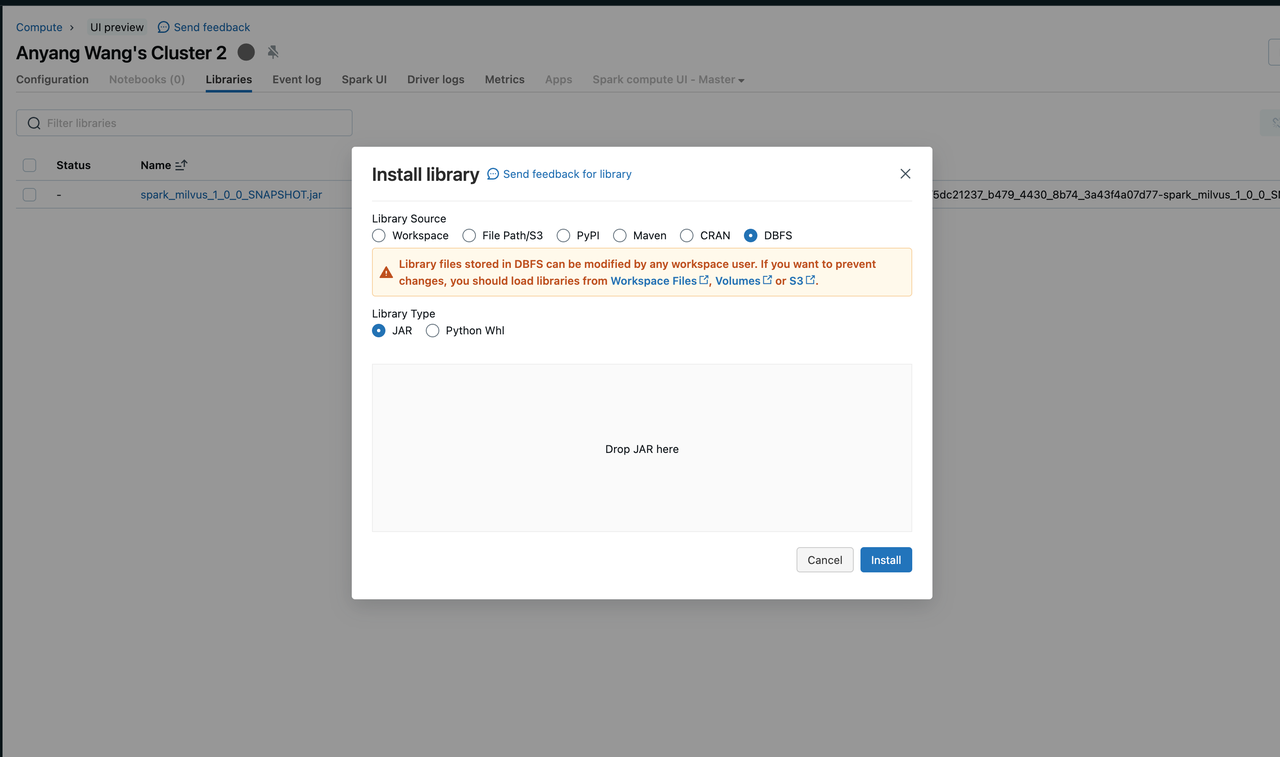

   安装库的方式有很多种。此处截图展示了从本地上传一个 jar 文件到集群中的方式。更多信息，请参考 Databricks 文档中的 [Cluster Libraries](https://docs.databricks.com/en/libraries/cluster-libraries.html)。

   ![Install Databricks Library](/assets/install-databricks-library.png)

2. 创建一个 S3 存储桶，并将其配置为 Databricks 集群的外部存储位置。

   Bulkinsert 要求将数据存储在临时存储桶中，以便 Zilliz Cloud 可以将数据批量导入。你可以创建一个 S3 存储桶，并将其配置为 databricks 的外部位置。详细信息请参考 [External locations](https://docs.databricks.com/en/sql/language-manual/sql-ref-external-locations.html)。

3. 保护你的 Databricks 凭证。

   详细信息请参考此博客中的指南 [Securely Managing Credentials in Databricks](https://www.databricks.com/blog/2018/06/04/securely-managing-credentials-in-databricks.html)。

**演示**

下面是一个代码片段，展示了批量数据迁移过程。与以上的 Milvus 示例类似，你只需要替换凭证和 S3 存储桶地址即可。

``` scala
// 将数据批量写入 Milvus 存储桶。
val outputPath = "s3://my-temp-bucket/result"

df.write
  .mode("overwrite")
  .format("mjson")
  .save(outputPath)

// 指定 Milvus 相关选项。
val targetProperties = Map(
  MilvusOptions.MILVUS_URI -> zilliz_uri,
  MilvusOptions.MILVUS_TOKEN -> zilliz_token,
  MilvusOptions.MILVUS_COLLECTION_NAME -> targetCollectionName,
  MilvusOptions.MILVUS_BUCKET -> bucketName,
  MilvusOptions.MILVUS_ROOTPATH -> rootPath,
  MilvusOptions.MILVUS_FS -> fs,
  MilvusOptions.MILVUS_STORAGE_ENDPOINT -> minioEndpoint,
  MilvusOptions.MILVUS_STORAGE_USER -> minioAK,
  MilvusOptions.MILVUS_STORAGE_PASSWORD -> minioSK,
)

val targetMilvusOptions = new MilvusOptions(new CaseInsensitiveStringMap(targetProperties.asJava))

// 将 Spark 输出的文件批量插入到 Milvus 中。
MilvusUtils.bulkInsertFromSpark(spark, targetMilvusOptions, outputPath, "mjson")
